More Horsepower

Arm Configurations

Choose the arm configuration that best meets your needs. The standard power arm offers maximum arm breakout force. For added reach and dig depth, equip your machine with the optional long arm (select models). The first and only clamp-ready extendable arm option (select models) delivers power and lifting performance when it’s retracted, combined with additional reach and dig depth when it’s extended.

Hydraulic X-Change System

For the most convenient attachment changes in the industry, choose the optional Hydraulic X-ChangeTM system. Activate the hydraulic pins at the press of a switch; retract for attachment removal or extend for attachment hook up. Hydraulic X-Change maintains optimal “pin-on” bucket geometry so arm and bucket forces are not compromised.

Extendable Arm

If you need more reach from your compact excavator, the extendable-arm option may be just what you need. As needed, the arm can be hydraulically extended up to 30 in., and then retracted to its standard position for maximum arm force and lift performance. The extendable arm cylinder is powered by the primary auxiliary circuit, and a paddle on the right-hand joystick controls the extension and retraction of the arm.

Selectable Auxiliary Hydraulic Flow

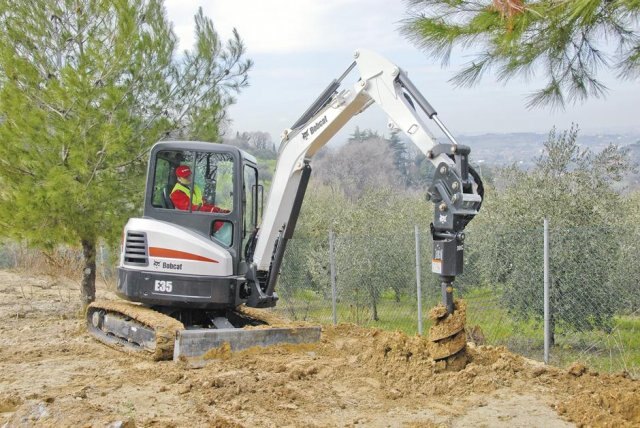

Many Bobcat® compact excavators are equipped with selectable auxiliary hydraulics. Three flow rates help you optimize the response of hydraulic attachments such as PowerTilt® and Hydra-Tilt™ swing accessories, clamps, grapples, hydraulic breakers and auger attachments. Select low flow for precise control, medium flow for placing or handling materials, or maximum flow for peak hydraulic attachment performance.

Angle Blade

Compact excavators have always had backfill blades for backfilling, but the angle blade option gives you more flexibility. It provides simultaneous up/down and angle adjustment, up to 25 degrees left or right. The Bobcat bolt-on replaceable cutting edge that is easy to rotate and simple to replace, providing lower operating costs.

Selectable Control Pattern

Easily change between “excavator” and “backhoe” patterns. No keys are required.

Auto Idle

Auto Idle makes it easier – and quieter – to pause your work, take a quick break or communicate on the jobsite. You’ll save fuel too. When machine functions aren’t used for more than four seconds, the machine automatically idles the engine until work resumes. When you move the joystick controls or initiate travel, the excavator automatically returns to the previously set throttle position. Auto idle can be enabled or disabled as needed.

Auto Shift

Auto-Shift travel shifts the machine out of high range and back automatically, offering superb travel performance without having to manually downshift. It automatically transitions the travel motors to and from high range, giving you greater tractive effort with no manual shifting. Simply select the travel speed range and go. A directional lug track also provides a smoother ride and less vibration when traveling.

Two-Speed Travel

Maneuver faster with the Bobcat two-speed option. The quicker you can move on your jobsite, the faster you can complete your work. Select low range for pushing and dozing and high range for increased jobsite mobility.

Fingertip Boom Swing Control

Bobcat® excavator controls allow you to make fine movements with low effort and maximum comfort – so you can get precise results in less time, with less fatigue. A rocker-style thumb switch, located on the left joystick, provides superior boom swing control with better metering than foot pedals. Multifunction operation, such as swinging and traveling simultaneously, is also easier. With the boom swing control on the joystick, you get more floor space and foot room that provides a comfort advantage on long, tiring jobs.

Depth Check

Achieve an accurate grade every time without leaving your cab by using the Bobcat® depth check system. Efficient and easy to use, the system delivers accurate dig depth measurement for precision grading performance. It prevents overdigging and the costs associated with backfilling and compacting fill material. It also prevents underdigging and the resulting need for manual labor to finalize depth or grade.

Blade Float

Simplify grading, leveling and backfilling. Blade float exerts a minimal, consistent down-force on the blade, with minimal operator input.

Engine Monitoring

Keep your Bobcat® compact excavator on the job – and out of the shop – with smart diagnostic features. Machine Shutdown Protection Most Bobcat excavators come standard with automatic shutdown that tracks engine coolant temperature, engine oil pressure, hydraulic oil temperature and other functions. The system prevents catastrophic engine failure and shuts the machine down if necessary – lessening the chance of damage to the engine or hydraulic components. Diagnostics Bobcat provides on-board diagnostics to efficiently troubleshoot problems in the field or prevent them before they occur – reducing downtime for you. Cold Weather Engine Protection This feature protects your machine from working too hard before the engine is properly warmed up.

In-Track Swing Frame

Instrumentation

Evaluate your machine performance, assess your costs and protect your investment with the handy instrumentation options on Bobcat® compact excavators. The standard panel gives you essential data, while the optional deluxe instrumentation panel offers advanced capabilities.

Protected Machine Components

Exposed hoses, weaker components and inferior design may mean a trip to the shop when you need your machine the most. All Bobcat® compact excavators are equipped with a durable tailgate, protected hydraulic lines, smarter hose routing and a redesigned workgroup.

Keyless Start

Keys are no longer necessary with the optional keyless start on Bobcat® compact excavators. The simple option ensures no time is lost on your worksite if you or your employees forget the keys in the shop. Start your machine by simply entering a set code number and pressing the start button. Keyless start also protects against theft or unauthorized use. The code can easily be changed using the master code supplied with the kit. It’s especially useful for rental machines, as the code can be changed for each customer.

Machine Protection

Bobcat® compact excavators are designed to prevent problems before they occur. Electronics meet or exceed military requirements for sealing, moisture, shock and vibration. Automatic glow plugs deliver easier starts and longer starter life, while battery run-down protection protects against vandals or forgetful operators.

Minimal and Zero Tail Swing

Do you frequently work close to objects, or against a wall? On minimal tail swing models, the rear of the house protrudes as much as 6 inches beyond the width of the tracks. For the greatest flexibility, choose a zero tail swing model; the rear of the house stays within the width of the tracks through full rotation. Slew and deposit soil where you need it, reposition the machine fewer times, and worry less about inadvertently contacting any surrounding objects.

Separable Cooling Cores

The cooling cores can be separated for quick, easy cleaning of the radiator.

Steel Tracks

Steel tracks increase your uptime and pushing force when you're working in harsh or abrasive jobsites. The segmented construction makes for quick, convenient repair - and the rubber pads give you a more comfortable ride.

Integrated Slew Brake

Integrated slew brakes hold your load steady on slopes for more accurate placement. It’s easier to position the excavator, and you no longer need to manually engage the slew brake during transport.

Fuel Fill Alert

An audible alarm beeps faster as the fuel tank approaches its capacity, taking the guesswork out of refueling.

Reversible Cutting Edge

Extend the life of your backfill blade through the bolt-on, one-piece and reversible cutting edge. The Bobcat® angle blade is easily replaceable compared to welded-on cutting edges.

Simple Machine Tie-Down

Get on and off the jobsite faster. Secure your load quickly, without searching for hard-to-reach tie-downs.

X-Frame Undercarriage

With better ground clearance, the X-frame undercarriage improves your performance in difficult conditions. Dirt and other debris easily pass through this undercarriage, making cleanup faster and leaving less debris on the trailers. The design places drive motors within the width of the tracks, protecting the assembly and improving agility in soft conditions. The recessed motor covers eliminate potential damage and improve your uptime on the job.

Cab Comfort

You’ll be more attentive when your compact excavator is quieter, set to your preferred temperature, and easy to operate. M-Series models continue the Bobcat tradition of comfortable, operator-focused machines. Enjoy more cab space, advanced climate control and reduced noise levels.

Ergonomic Controls

Operator-friendly, ergonomic controls keep you productive all day long. Control attachments with precision, flexibility and low fatigue. Grade, level and backfill with less operator input. Head to the next jobsite using the one-hand travel control. Adjust the arm rests for added comfort.

In-Cab Pattern Selector

A pattern selector allows you to change from an “excavator” to a “backhoe” control pattern. No keys or special tools are required.

Hydraulic Joystick Control

The hydraulic joystick control on the Bobcat® excavator delivers smooth, fluid operation and increased efficiency.

Soft Grip Joysticks

Bobcat excavators feature soft-grip pilot control joysticks that provide effortless control of the workgroup.

Rotary Speed Control Knob

Make throttle adjustments with an easy-to-use rotary knob. It provides precise control and adjusts easier than a lever.

Panoramic Serviceability

With Bobcat® compact excavators, it's easy to make maintenance part of your routine. Perform preventative maintenance using Bobcat's industry-leading service access and simple checkpoints. Use your shop time to complete the job instead of gaining access. You'll complete essential maintenance as scheduled and reduce your operating costs.

Centralized Grease Bank

A centralized grease bank makes fast, simple work of lubricating the slew bearing and slew pinion. With the large opening, it’s simple and easy to reach the well-protected grease cylinder fitting and complete track tensioning.
